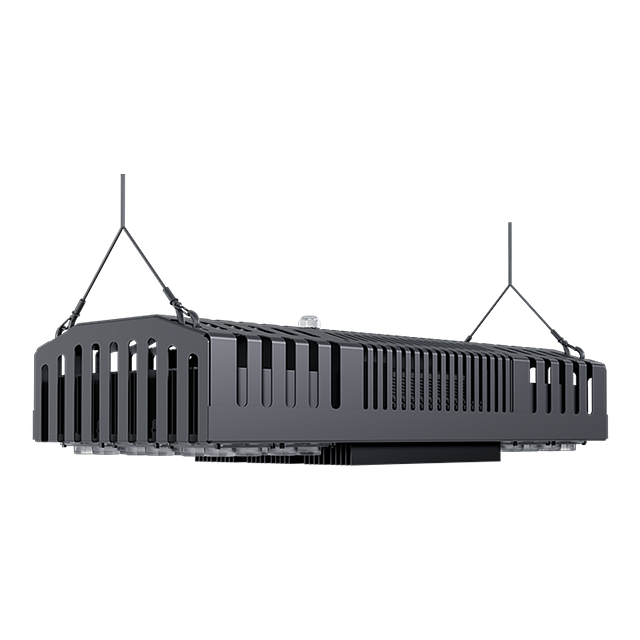

Ironclad® LED Mega™ High Bay
MEGA HIGHBAY 750W.pngIronclad® LED Mega™ High Bay
Retrofits antiquated 750W & 1000W HID Lamps
Description
Shat-R-Shield’s Mega High Bay is perfect for replacing 750W and 1000W HID lamps, and is ideal for applications with high ambient temperature ratings; the mega high bay performs well for ceilings heights above 40’. This fixture additionally has a UL Damp Location rating, and a UL 1598 certification.
Resources
CCT
- 5000K
CRI
- 70
Color / Finish
- Black
Controls Options
- Occupancy Sensor
Dimensions
- H: 3.75 In. L: 31 In. W: 13.5 In.
- H: 6.75 In. L: 31 In. W: 17.75 In.
Dimming Protocol
- 0-10 V
Distribution
- Medium
- Narrow/Aisle
- Wide
Efficacy
- 106
- 108
- 110
Lamp Life
- 51000
- 116000
Lamp Source
- LED
Listings
- cULus
Lumens
- 53084
- 53706
- 53951
- 72173
- 73249
- 73608
Materials
- Steel
Mounting
- Ceiling
- Corner
- Hanging
- Pendant
- Trunnion
Ratings & Compliance
- Build America Buy America (BABA)
- Buy American Act (BAA)
- RoHS
- TAA
- Wet
Static LED Color
- White
Voltage
- 120-277 V
- 347 V
- 480 V
Warranty
- 5
Watts
- 490
- 680
- 750
- 1000
Weight
- 70
