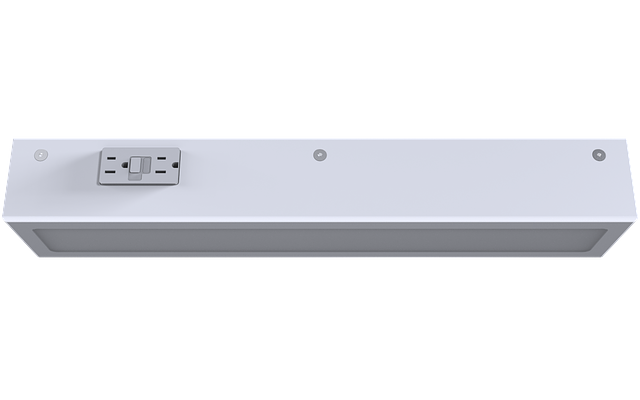

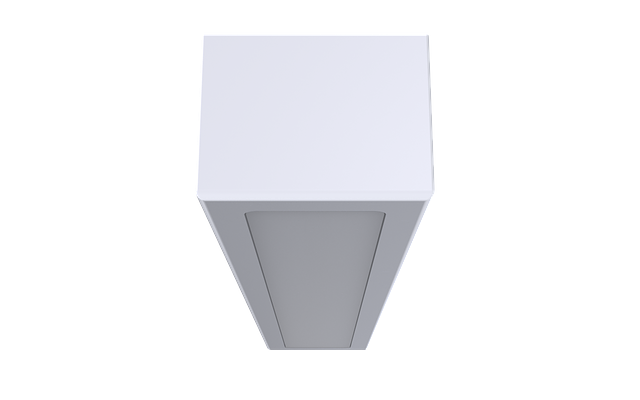

IRONCLAD® SlimLin

Tamper-Proof Slim Linear Fixture

Specification Sheet Configure Now

Description

The Ironclad® SlimLin fixture with it's smalll footprint is designed to mount in tight spaces such as a prison cell. The heavy-gauge mounting box is able to withstand abuse and drastically impede tampering, removal, or damage to the light fixture within a prison facility. The fixture itself utilizes a specially engineered 14-gauge steel frame and a 0.25" polycarbonate lens. Featuring field-selectable wattage and color temps, giving the installer the option to dial in the exact light level desired by the facility.
ResourcesConfigureSimilar ProductsCollections

Resources

CCT

  • 3500K
  • 4000K
  • 5000K

Color / Finish

  • White

Dimensions

  • L: 21 In. W: 4 In. H: 3 In.

Dimming Protocol

  • 0-10 V

Efficacy

  • 94
  • 97
  • 99
  • 100
  • 102
  • 104
  • 105
  • 107

Lamp Life

  • 100000

Lumens

  • 128
  • 200
  • 394
  • 398
  • 407
  • 509
  • 512
  • 516
  • 599
  • 604
  • 614
  • 667
  • 678
  • 681
  • 767
  • 774
  • 784
  • 958
  • 979
  • 986
  • 1019
  • 1020
  • 1035
  • 1206
  • 1231
  • 1236
  • 1472
  • 1496
  • 1510
  • 1560
  • 1614
  • 1861
  • 1883
  • 1900
  • 1902
  • 1914
  • 1928
  • 2324
  • 2398
  • 2442
  • 2451
  • 2472
  • 2496
  • 2921
  • 2976
  • 2989
  • 3001
  • 3008
  • 3094
  • 3644
  • 3725
  • 3769
  • 4606
  • 4719
  • 4839

Materials

  • Polycarbonate
  • Steel

Ratings & Compliance

  • Build America Buy America (BABA)
  • Buy American Act (BAA)
  • IK10
  • TAA
  • Wet

Shape

  • Linear

Voltage

  • 120-277 V

Warranty

  • 5 yr

Watts

  • 5
  • 7
  • 9
  • 12
  • 15
  • 20
  • 24
  • 32
  • 42
