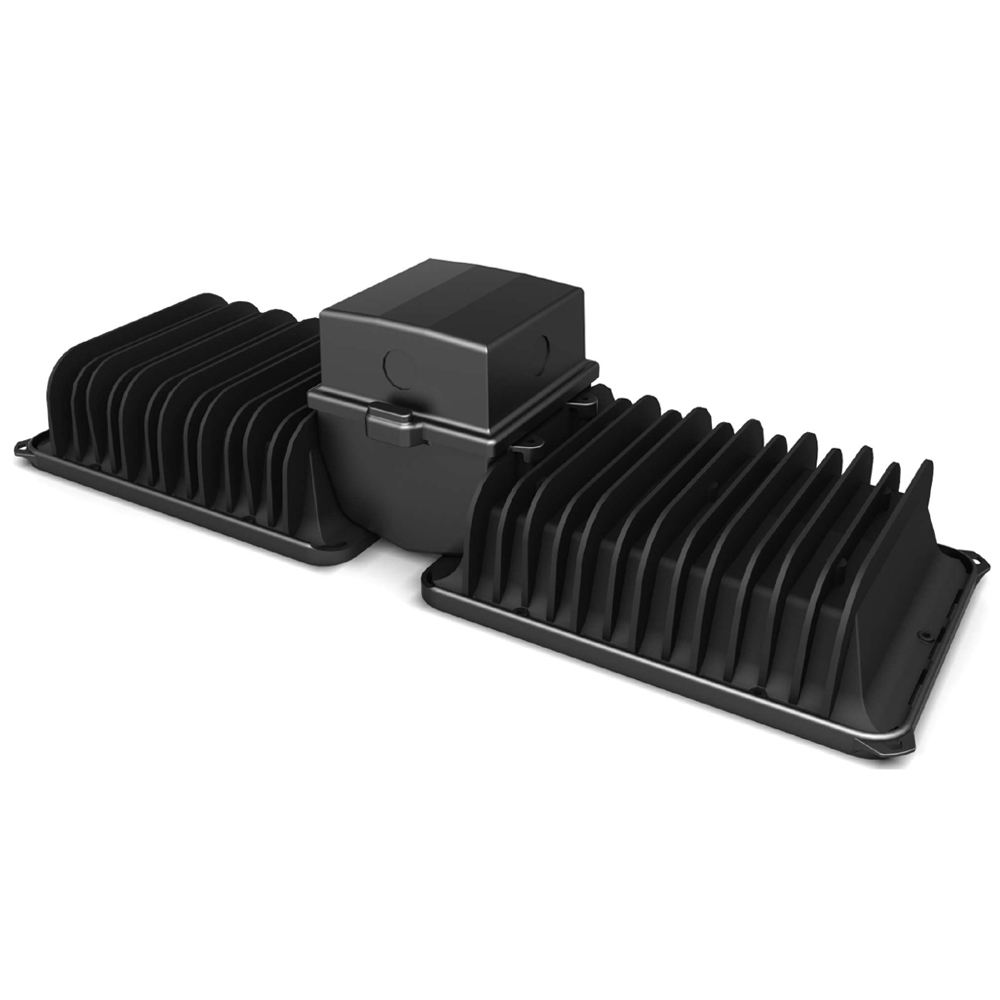

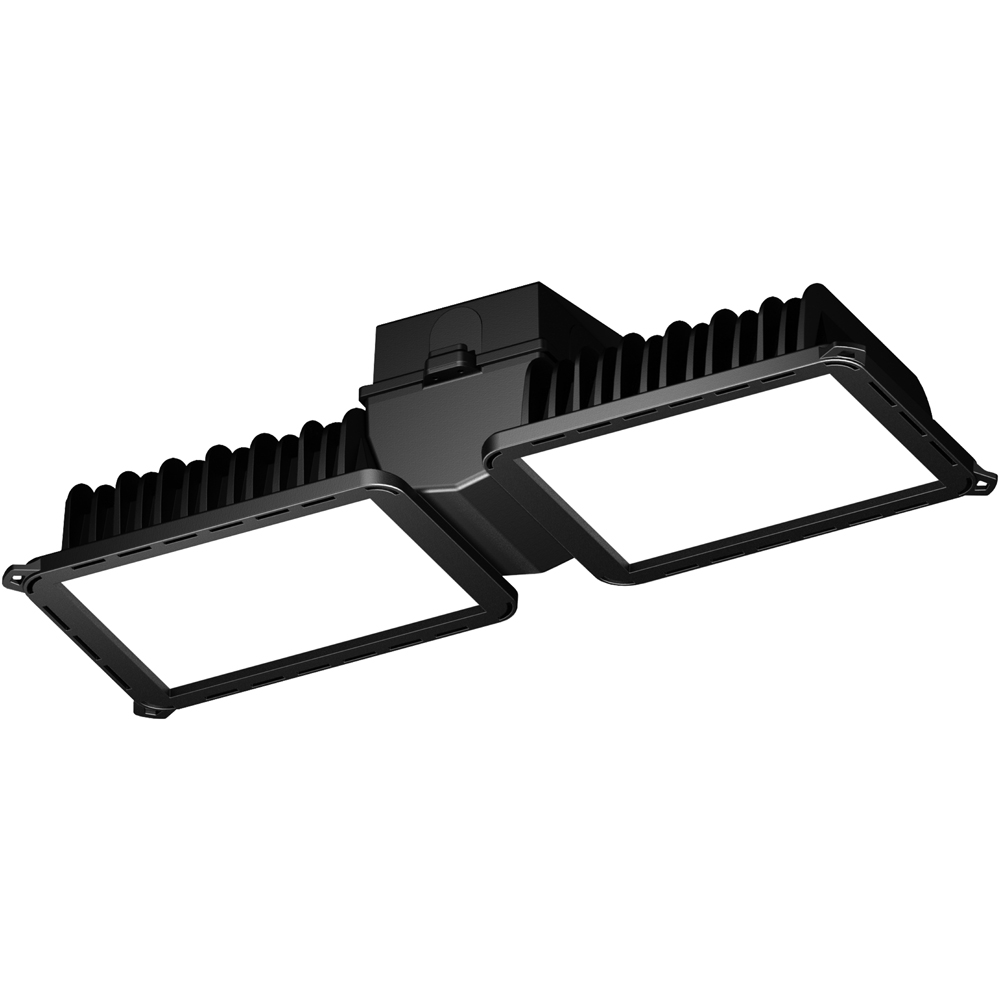

Incoplas™ LED Vapor Tight

SHAT-R-SHIELD’S INCOPLAS™ LED VAPOR TIGHT is manufactured with thermally conductive engineered polymers specially designed to withstand moisture, dust and harsh environments in applications where exposure is detrimental to the life of the luminaire. This high efficiency (100+LPW) luminaire replaces a 2 or 4 lamp 4′ T8 fixture.

ENGINEERED THERMAL PLASTIC Formulated through extensive research and development, this material is exclusively manufactured for optimal performance of the luminaire in applications exposed to corrosive elements.

High Thermal Conductivity– easily extracts heat away from the light source.
Corrosion Resistance– withstands prolonged exposure to highly corrosive elements (moisture, salt spray, acids, bases).
Extremely Lightweight– weighs 5 lbs; allows for easy one-person installation.
Small Form Factor– allows for a multitude of lighting layout designs.

PRODUCT SPECIFICATIONS
035LV50           35W / 3500 Lumens / 5000K / 80 CRI
070LV50           70W / 7000 Lumens / 5000K / 80 CRI

L70 >54,000 Hours; Projected L70 85,000 Hours
LM-79, LM-80 tested to IESNA standards
Universal Driver 120-277V
0-10V Dimming
Dimensions: 22.25″L x 7″W x 5.375″H
Operating Temperature:-22°F to 113°F (-30°C to 50°C)
Weight: 5 lbs. (2.3kg)
Mounting: surface, pendant, conduit, aircraft cable

CERTIFICATIONS
DLC, NSF, IP66, USDA, NEMA 4X, NEMA 5, UL, UL 1598, UL 1598A, UL Wet Location

APPLICATIONS
Ideal for settings subject to harsh elements:
Industrial Facilities Food Processing Plants Cold Storage • Parking Garages Wash Down Areas Tunnels Subways • Marine Facilities Construction Sites Airports Stairwells • Waste Water Treatment Plants Inspection Areas

WARRANTY
5 year limited warranty

ORDERING INFORMATION

Wattage Fixture CCT Lens Power Controls Whip Plug Options

LV
50
PR
VL


00

01
035= 35W
070= 70W
LV= LED VT 50= 5000K PR= Prismatic Acrylic VL= 120-277V N= No Control
B= PIR Basic
A= PIR Programmable
P= Photocell
00= No Whip
P6= 6' with 120V Plug*
00= None* 00= None
AC= Aircraft Cable with gland

Example Part Number: 035LV50PRVLPP600AC01
*Other options available upon request.
-Accessories also sold separately
PHOTOMETRIC FILES
035LV50 Polar Candela Distribution
070LV50 Polar Candela Distribution
COMPONENTS
